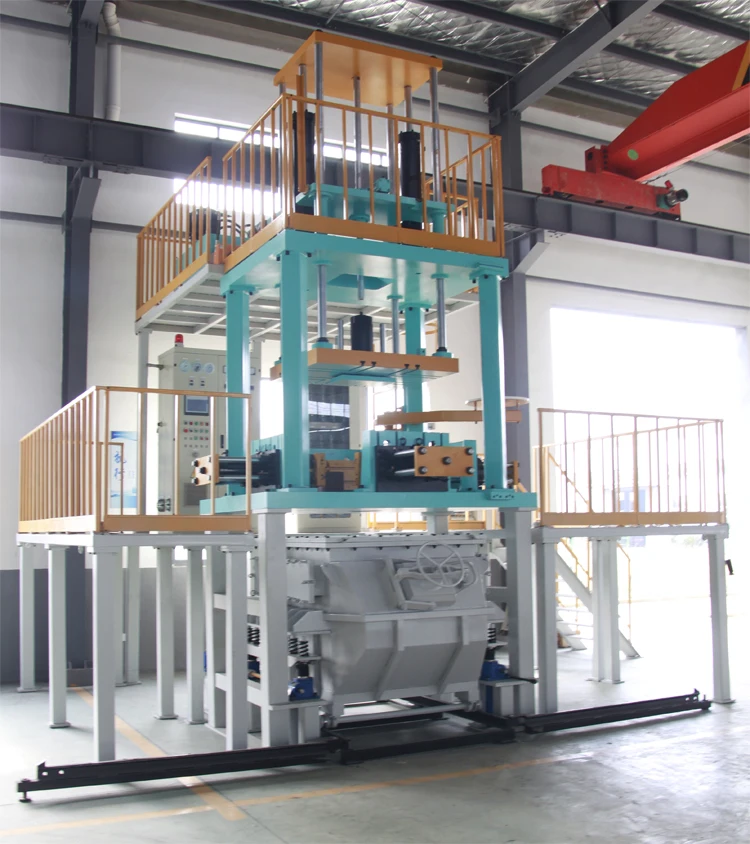

BQ-L aluminum alloy wheel hub special low pressure casting machine

Name: BQL aluminum alloy wheel hub special low pressure casting machine
Brand: BOQIAO
Price: 1 USD

Brand Name : BOQIAO

Model Number : BQ-L

Certification : ISO/CE

Place of Origin : CHINA

MOQ : 1

Price : negotiable

Supply Ability : 10 sets/per mouth

Delivery Time : 60 days

Packaging Details : Export standard packaging or as required

Product name : Wheel hub special lwo pressure die casting machine

Application : Aluminum alloy wheel rim

Service : Turnkey project

Feature : High automatic and high accuracy

Suitable size : 13 inch to 30 inchs

Operation : Siemens PLC and touch screen control

Furnace capacity : 800,1000 kg

Mould cooling : 16 routes

Contact Now

BQ-L aluminum alloy wheel hub special low pressure casting machine

Usage:

Specially designed for aluminum wheeled disc hub casting

Product features introduction:

² Non-stick aluminum furnace structure, reduce oxidation loss

² Full digital servo hydraulic system, or variable frequency hydraulic system, saving more than 50%

² Mold 90° mounting or 45° mounting (reverse mounting)

² High precision pressure automatic control

² Fully automatic cycle

² Automatic cycle

² Automatic pickup

² high productivity

² High rigidity, high strength and high reliability

Equipment Related Technology Parameters:

Suitable for wheel hub dimension	From 13-30 inches
Holding furnace capacity	500,800,1000 kg
Working platform dimension	26001800130 mm
Moving platform dimension	1100*1000 mm
The distance between moving platform and working platform	550-1850 mm
Moving platform distance of travel	1300 mm
Mold cooling	16 routes (water,air,spray)
Machine dimension	585041555365 mm

Low Pressure Casting Technology Processes:

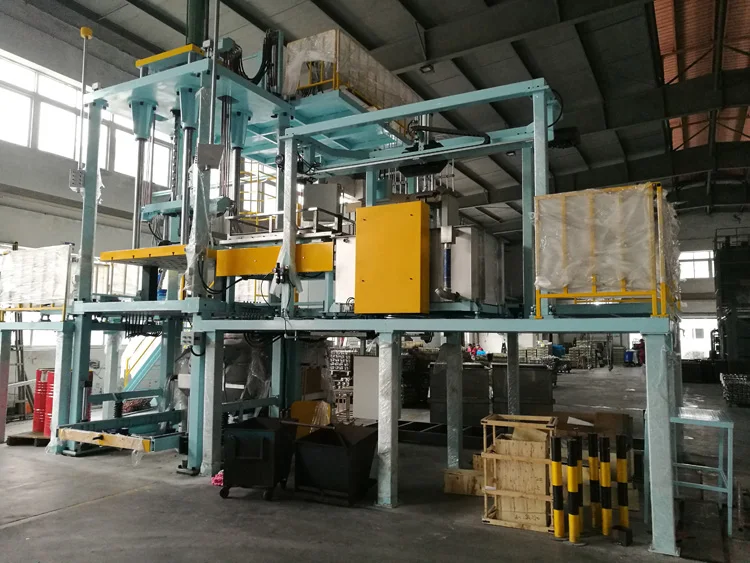

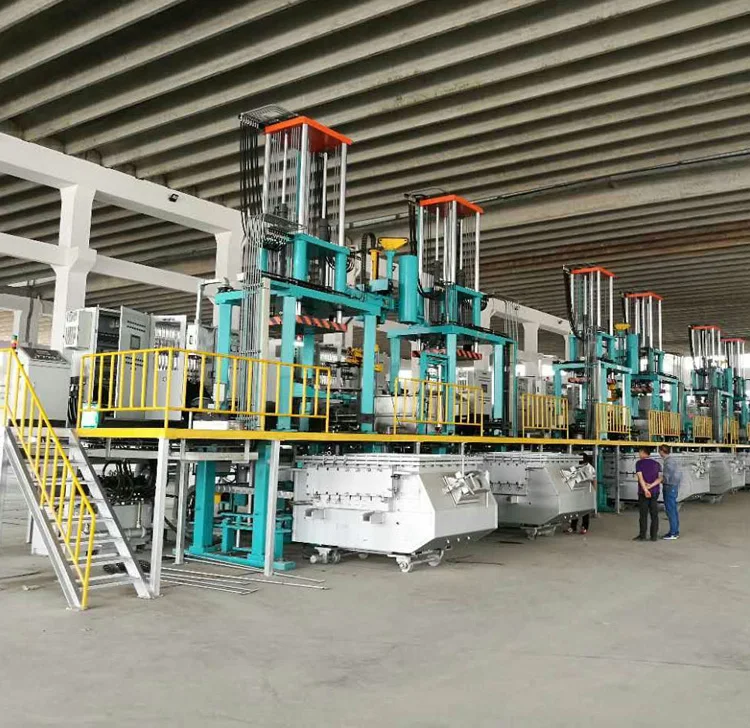

Equipments Installation Photos:

BQ-L aluminum alloy wheel hub special low pressure casting machine

Company Photos:

BQ-L aluminum alloy wheel hub special low pressure casting machine

Aluminum alloy casting samples:

BQ-L aluminum alloy wheel hub special low pressure casting machine
